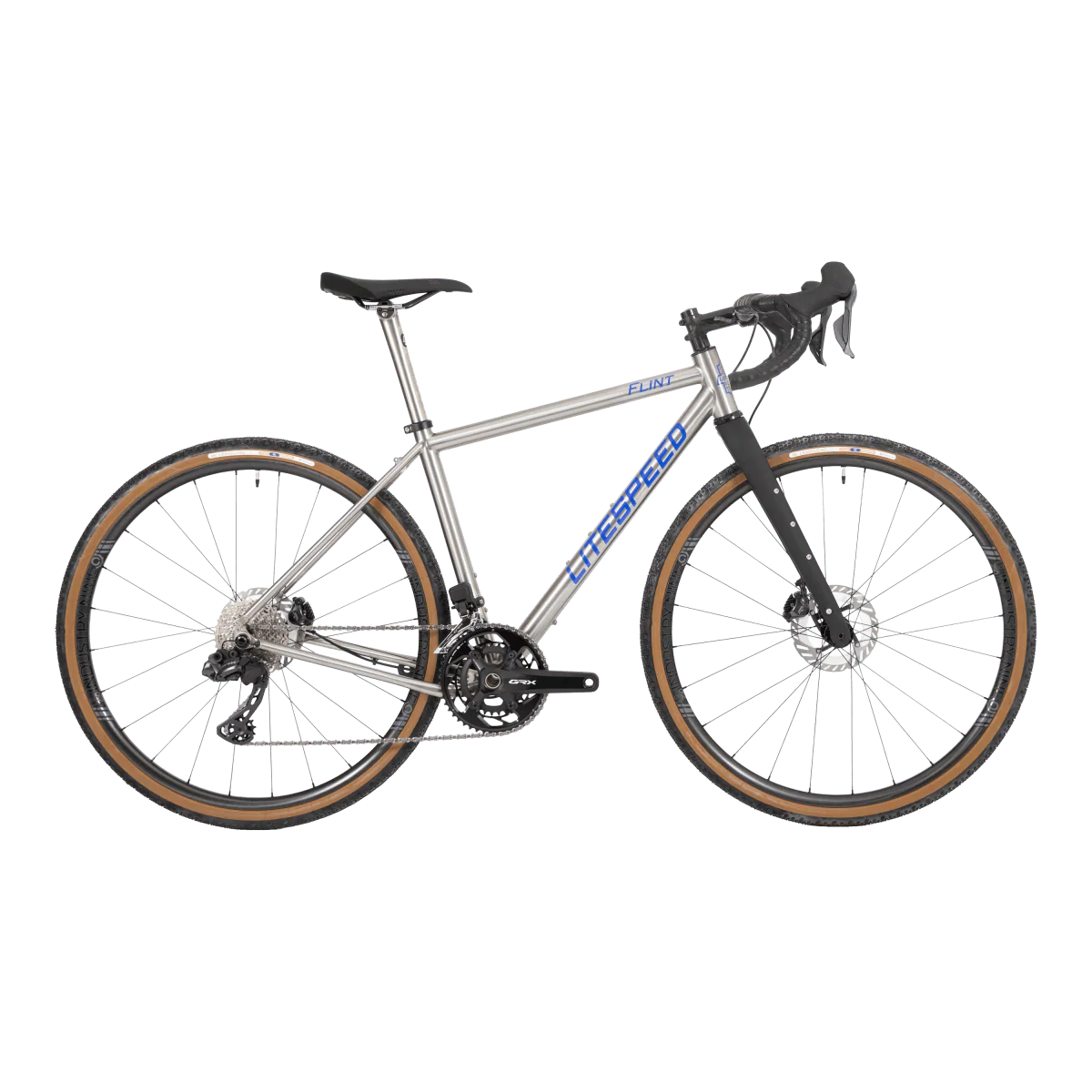

The Flint. Ignite Your Gravel Experience.

The Litespeed Flint is titanium gravel versatility in an economical package. Off-road sessions with friends, epic race adventures, bikepacking, and more: the Flint is the sharpest blade in your quiver.

The Flint Hills surrounding Emporia Kansas are iconic for the geology that exists on its surface. A quiet foil, the flint stones that make up the course for Unbound Gravel can serve as the foundation to greatness. Or reach up and slash a sidewall, dashing hopes. Flint can be a spark—or a silent threat.

Tougher than its namesake, the Litespeed Flint is ready for anything. The Flint takes the spirit of adventure and high-speed action, adds a healthy dose of rowdy good times—and packs in a wildly affordable titanium bike that floats over the roughest terrain you aspire to traverse. The Flint is your all-in-one, good-times gravel rig.

The Flint features 3AL/2.5V titanium, fabricated at our factory in Chattanooga, Tenn. With a clean braceless seatstay design for full mud-shedding clearance, super clean cable routing, tons of tire clearance for sure footing, and more, take it all on—no matter the trail. From fast, groomed gravel races to forests or desert singletrack sessions with friends, you can climb and sprint with pure energy.

Massive tire clearance variance gives you ample choice: select from low-volume file tread for speed, or knobby high-volume tires up to 48mm when faced with loose rock, deep sand, or tacky mud. Add loads of accessory options from rack mounts to nutrition and extra hydration/storage mounts, and you’re fully packed for your wildest long adventures. Stable without sacrificing agility, the Flint moves with ease where you want—when you want.

And as always, Litespeed is titanium tough, dialed to tackle everything you throw at it. Mud, sand, rocks—all batted away with ease. With six sizes plus custom options, as well as your choice of crank length, bar width, and stem length, your perfect fit is assured.

The Flint also has all the style. Select from a wide array of vinyl graphics or consider etched graphic or TiDize color anodizing upgrade choices. The choice is yours.

Load up for a day of tackling the trails with the crew or a solo weekend commune with nature. Even the race start line chasing that well-earned finish line beverage! The Flint is your ace in the hole—every time.

Curious how we stack up against other brands?

See Comparison Chart

Now offering Home.Delivery.Right delivery service!

See Shipping Options

Key Features

3AL/2.5V titanium with size-specific tubesets, each with wall thickness controlled, drawn, and tuned per size
Titanium dropouts, disc brake mount, headtube, and bottom bracket designed, and CNC machined in-house at Litespeed to deliver optimal strength-to-weight
Dropped non-driveside chainstay for increased tire and chainring clearance
Universal Derailleur Hanger (UDH) design standard
Three bottle boss locations, including under downtube provided standard
Tire clearance up to 48mm (or 55mm on 650b tires)
Shift cable routing: Di2/AXS-specific internal or dual (Di2/AXS/Mechanical) external capability
Internally-routed rear brake housing
PF30 bottom bracket shell, with T47 threaded bottom bracket upgrade available
Litespeed vinyl graphics provided standard
Bright Brushed frame finish provided standard
TiDize color anodization or etched graphic upgrade available
Frame sizes: XS, S, M, ML, L, XL and custom
Proudly handcrafted in Chattanooga, TN using globally sourced premium materials
Average weight for size medium frame: 1,451 grams

See Flint Stories

Geometry
Components
FAQ

Engineered with a lowered bottom bracket height, a bit longer wheelbase, and more capable stack and reach, the Flint delivers tuned stability for long days in the saddle. The Flint is Litespeed’s most versatile gravel ride yet.

	Size	XS	S	M	M/L	L	XL
A	Top Tube Length	50.3	52.3	54.5	56.8	58.0	60.0
B	Head Tube Angle	69.0˚	69.5˚	70.0˚	70.5˚	71.0˚	71.5˚
C	Seat Tube Angle	75.0˚	74.5˚	74.0˚	73.5˚	73.5˚	73.0˚
D	Seat Tube Length	43.0	44.5	47.0	49.5	52.0	55.0
E	Chainstay Length	43.7	43.7	43.7	43.7	43.7	43.7
F	BB Drop	7.8	7.8	7.6	7.6	7.4	7.4
G	Wheelbase	101.9	103.0	104.5	105.9	106.8	107.5
H	Front Center	59.4	60.5	62.0	63.3	64.2	64.9
I	Fork Rake	5.0	5.0	5.0	5.0	5.0	5.0
J	Standover Height	71.4	73.0	75.8	78.4	81.2	83.8
K	Head Tube Length	10.1	11.5	14.1	16.6	19.2	21.4
L	Stack	53.5	55.0	57.5	60.0	62.5	65.0
M	Reach	36.0	37.0	38.0	39.0	39.5	40.0

Stem Lengths

Frame Size	Stem Length
XS	80mm
S	80mm
M	90mm
ML	90mm
L	100mm
XL	110mm

We pair each Litespeed frame with some of the best components and drivetrains in the world. We take component specifications seriously, as the quality and performance of the components are just as important as the frames we design and produce.

If you have any questions or would like to request custom component specifications, please contact us.

Shimano GRX 600 1X

Headset	Select Headset Above
Stem	FSA Gossamer
Handlebar	FSA NS Adventure Compact
Bar Tape	Select from above
Seatpost	FSA Gossamer
Saddle	Select from above
Shifters	Shimano GRX RX600
Rotors	Shimano RT70 160mm
Rear Derailleur	Shimano GRX RX812

Crankset	GRX RX600 1X 40T
Cassette	Shimano SLX M7000 11-42
Chain	Shimano HG601
Bottom Bracket	Praxis
Tires	Select Tires Above
Wheelset	Select Wheels Above
Brakeset	Shimano GRX RX400 Hydraulic
Fork	Select Fork Above

Shimano GRX 600 2x

Headset	Select Headset Above
Stem	FSA Gossamer
Handlebar	FSA NS Adventure Compact
Bar Tape	Select from above
Seatpost	FSA Gossamer
Saddle	Select from above
Shifters	Shimano GRX RX600
Rotors	Shimano RT70 160mm
Front Derailleur	Shimano GRX RX810
Rear Derailleur	Shimano GRX RX810

Crankset	GRX RX600 46/30
Cassette	Shimano HG700 11-34
Chain	Shimano HG601
Bottom Bracket	Praxis
Tires	Select Tires Above
Wheelset	Select Wheels Above
Brakeset	Shimano GRX RX400 Hydraulic
Fork	Select Fork Above
-
-

Shimano GRX 810 1X

Headset	Select Headset Above
Stem	FSA Energy
Handlebar	FSA A-Wing AGX Alloy
Bar Tape	Select from above
Seatpost	FSA SL-K Carbon
Saddle	Select from above
Shifters	Shimano GRX RX810
Rotors	Shimano MT800 160mm
Rear Derailleur	Shimano GRX RX812

Crankset	GRX RX810 1X 42T
Cassette	Shimano XT M8000 11-42
Chain	Shimano HG701
Bottom Bracket	Praxis
Tires	Select Tires Above
Wheelset	Select Wheels Above
Brakeset	Shimano GRX RX810 Hydraulic
Fork	Select Fork Above
-

Shimano GRX 810 2x

Headset	Select Headset Above
Stem	FSA Energy
Handlebar	FSA A-Wing AGX Alloy
Bar Tape	Select from above
Seatpost	FSA SL-K Carbon
Saddle	Select from above
Shifters	Shimano GRX RX810
Rotors	Shimano MT800 160mm
Front Derailleur	Shimano GRX RX810
Rear Derailleur	Shimano GRX RX810

Crankset	GRX RX810 48/31
Cassette	Ultegra 11-34
Chain	Shimano HG701
Bottom Bracket	Praxis
Tires	Select Tires Above
Wheelset	Select Wheels Above
Brakeset	Shimano GRX RX810 Hydraulic
Fork	Select Fork Above
-
-

Shimano GRX 820 1X 12 Speed

Headset	Select Headset Above
Stem	FSA Energy
Handlebar	FSA A-Wing AGX Alloy
Bar Tape	Select from above
Seatpost	FSA SL-K Carbon
Saddle	Select from above
Shifters	Shimano GRX RX820 12 spd
Rotors	Shimano MT800 160mm
Rear Derailleur	Shimano GRX RX822 12 spd

Crankset	Shimano GRX RX820 1x 40T
Cassette	Shimano XT M8100 10-51 12 spd
Chain	Shimano M8100 12 spd
Bottom Bracket	Praxis
Tires	Select Tires Above
Wheelset	Select Wheels Above
Brakeset	Shimano GRX RX820 Hydraulic
Fork	Select Fork Above
-

Shimano GRX 820 2x 12 Speed

Headset	Select Headset Above
Stem	FSA Energy
Handlebar	FSA A-Wing AGX Alloy
Bar Tape	Select from above
Seatpost	FSA SL-K Carbon
Saddle	Select from above
Shifters	Shimano GRX RX820 12 spd
Rotors	Shimano XT MT800 160mm
Front Derailleur	Shimano GRX RX820 12 Spd
Rear Derailleur	Shimano GRX RX820 12 spd

Crankset	Shimano GRX RX820 48/31
Cassette	Shimano Ultegra R8100 11-34T 12 spd
Chain	Shimano M8100 12 spd
Bottom Bracket	Praxis
Tires	Select Tires Above
Wheelset	Select Wheels Above
Brakeset	Shimano GRX RX820 Hydraulic
Fork	Select Fork Above
-
-

Shimano GRX 810 Di2 1X

Headset	Select Headset Above
Stem	FSA Energy
Handlebar	FSA A-Wing AGX Alloy
Bar Tape	Select from above
Seatpost	FSA SL-K Carbon
Saddle	Select from above
Shifters	Shimano GRX RX815 Di2
Rotors	Shimano MT800 160mm
Rear Derailleur	Shimano GRX RX817 Di2

Crankset	GRX RX810 1X 42T
Cassette	Shimano XT M8000 11-42
Chain	Shimano HG701
Bottom Bracket	Praxis
Tires	Select Tires Above
Wheelset	Select Wheels Above
Brakeset	Shimano GRX RX810 Hydraulic
Fork	Select Fork Above

Shimano GRX 810 Di2 2x

Headset	Select Headset Above
Stem	FSA Energy
Handlebar	FSA A-Wing AGX Alloy
Bar Tape	Select from above
Seatpost	FSA SL-K Carbon
Saddle	Select from above
Shifters	Shimano GRX RX815 Di2
Rotors	Shimano MT800 160mm
Front Derailleur	Shimano GRX RX815 Di2
Rear Derailleur	Shimano GRX RX815 Di2

Crankset	GRX RX810 48/31
Cassette	Ultegra 11-34
Chain	Shimano HG701
Bottom Bracket	Praxis
Tires	Select Tires Above
Wheelset	Select Wheels Above
Brakeset	Shimano GRX RX810 Hydraulic
Fork	Select Fork Above
-
-

SRAM Force XPLR AXS D2 12 Spd

Headset	Select Headset Above
Stem	FSA Energy
Handlebar	FSA A-Wing AGX Alloy
Bar Tape	Select from above
Seatpost	FSA SL-K Carbon
Saddle	Select from above
Shifters	SRAM Force D2 AXS HRD
Rotors	SRAM Centerline X 160mm
Rear Derailleur	SRAM Force D2 AXS XPLR 12spd

Crankset	SRAM Force D2 1X 40T 12spd
Cassette	SRAM Force XG 1271 XPLR 10-44 12spd
Chain	SRAM Force Flattop 12spd
Bottom Bracket	SRAM Press-Fit
Tires	Select Tires From Above
Wheelset	Select Wheels Above
Brakeset	SRAM Force D2 HRD
Fork	Select Fork Above
-

SRAM Rival XPLR ETAP AXS 12 Spd

Headset	Select Headset Above
Stem	FSA Gossamer
Handlebar	FSA NS Adventure Compact
Bar Tape	Select from above
Seatpost	FSA Gossamer
Saddle	Select from above
Shifters	SRAM Rival eTap AXS
Rotors	SRAM Centerline X 160mm
Rear Derailleur	SRAM Rival XPLR eTap AXS 12spd

Crankset	SRAM Rival 1X 42T 12spd
Cassette	SRAM Rival XPLR 10-44 12spd
Chain	SRAM Rival 12spd
Bottom Bracket	SRAM Press-Fit
Tires	Select Tires From Above
Wheelset	Select Wheels Above
Brakeset	SRAM Rival eTap AXS HRD
Fork	Select Fork Above
-

Review Title

Review Quote
Read Review
Find answers to common questions about bike builds, custom component selections, and shipping. If you have any questions feel free to live-chat with us or contact us.

How long does it take to receive my bike?
Due to high demand, lead times vary per bike model, size, and build kit. For an accurate delivery estimate live-chat or contact us!

Can I make changes to the build kit?
Absolutely. Our bikes are built to order so you can customize however you'd like. If there are components you'd really like on your bike but don't see them offered live-chat or contact us for availability and a custom quote!

Can I have a different length stem, crankarms, or different gearing?
We spec different length components on our bikes based on common lengths per each size of bike. If you are looking to specify what length components or the gearing you'd like on your new Litespeed just live-chat or contact us and we'll get you started on a custom order.

How much does shipping cost?
UNITED STATES: Shipping for frame and frameset orders is $55 USD. For full bike orders shipping is $195 and includes professional assemble at our Litespeed factory and shipment in our Litespeed Pro Box so you don't have to assemble the bike when it arrives to your door. For technician delivery, check out our Home.Delivery.Right service. Click here for shipping options.

OUTSIDE OF USA: By going through the checkout process, you will be able to see the shipping charges associated with shipping to your country. We offer competitive shipping prices around the world, and even cover duty, VAT and import fees when shipping to Hong Kong, Singapore, Taiwan and Malaysia.

Does my bike arrive assembled?
For orders in the United States our bikes ship assembled in our Litespeed Pro Box. Adjust your bars then add the seatpost and front wheel and you're ready to ride. We also offer our technician delivery service, Home.Delivery.Right. Click here for shipping options.

Please note: all disc brake bikes are shipped with a leverless thru-axle. A 6mm allen wrench is needed for removal or installation of your front and rear wheels.

*Bikes ordered with custom geometry:
Our 30-day return policy does not apply to custom frame orders. If your order is cancelled for any reason, you will receive a 50% refund. Questions? Reach out to our team via LiveChat online or via email at info@litespeed.com and we'll be happy to help.
